German hot sale telescopic arm wheel loader

FOB Reference Price:Get Latest Price
$13,000.00 - $18,000.00 / Set | 1 Set/Sets round baler loader (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Dimension(Long * Breadth * High):
2690 X1240 X 2285mm
Condition:
New
Brand Name:
STEEL CAMEL
Place of Origin:
Shandong, China
Type:
Front Loader
Moving Type:
Wheel Loader
Certification:
CE
Model Number:
M910
Product name:
mini telescopic arm wheel loader
Operating weight:
1850kg
Engine:
Perkins
Rated Power:
33ph
Tire:
26*12-12
Lifting height:
telescopic boom to 3000mm
Pump and valve:
Italy
Transmission:
Hydrostatic
Oil flow:
30-70L/min, two pumps

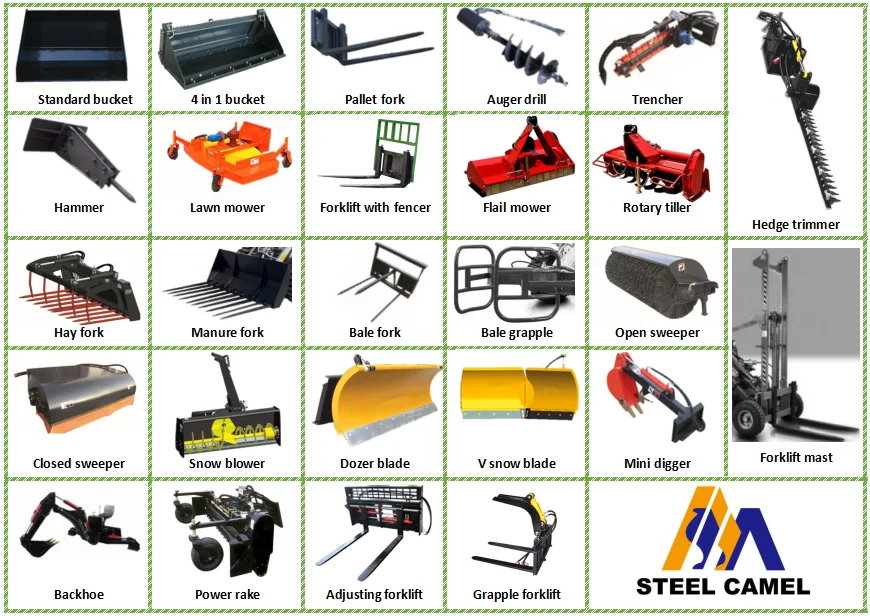

Attachments:
bale grapple, bale fork, bucket, sweeper, etc
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Rated Load:
1200kg
Supply Ability
Supply Ability:
800 Set/Sets per Year round baler loader
Packaging & Delivery
Packaging Details
Nude package, drive into container and fixed well;
3 sets/20'GP, 6 sets/40'HQ, with standard bucket;
Different attachment items and quantity, loading meathod is different
Port
Qingdao
Lead Time :
5-30 days according to stock and order qty
Loader Description

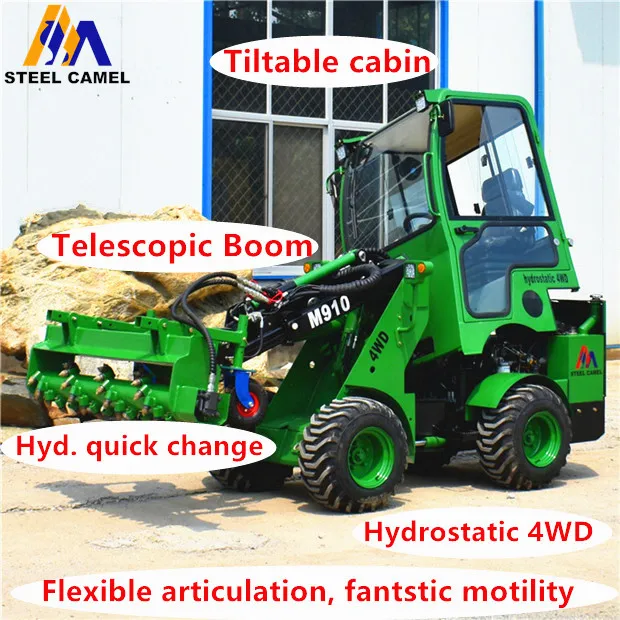

German hot sale mini telescopic arm wheel loader with agricultural tools for farming usage

STEEL CAMEL mini telescopic arm wheel loader devoted to offer best user experience, we do not only concern operformance, but also easy maintenance


Tiltable cabin gives full access to the complete inside structure of the loader, and it can be done in one minutes just by your hands.

The full control system is just under a bolted on side cover, and all the bolts are just outside to your hands
Model
M910 mini telescopic farm loader
Dimension with cabin (LxWxH)
2690 x1240 x 2285mm
Max. lifting height (normal boom)
2512mm
Max. lifting height (telescopic boom)
3030mm
Max. dumping height
2630mm
Rated loading capacity
1200kg
Min. turning radius
2120mm
Turning angle
45 degree
Min. ground clearance
268mm
Speed
0-10 km/h single speed; 0-8-16km/h two speed
Weight with bucket and counterweight
1850kg
Standard tire
26X12-12
Tire pressure
2.8 bar
Oil tank capacity
45L
Pressure
190 bar
Working oil flow
33.5L/minx2
Tracking oil flow
78L/min
Oil model(mineral oil)
L-HL46
Fuel tank capacity
30L
Battery
60Ah, 12V
Engine
Perkins
Rated power
33hp/25kw
Detailed Images

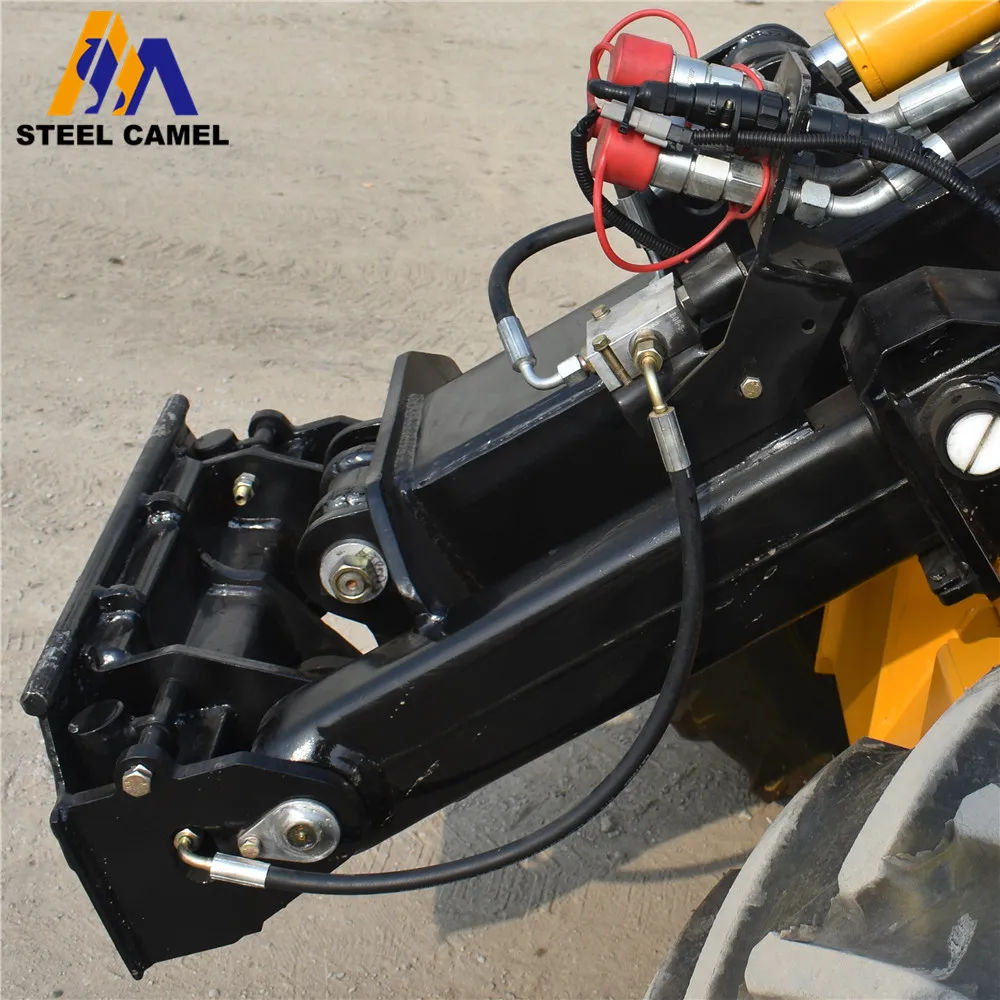

Working device:

1.Telescopic boom with 3500mm reach

2.41l/min, or 82L/min, two gears output meet different work requirements.

3. Electrical output for some special attachments

4. Hydraulic quick coupling for easy changing attachments

5. Boom floating and self levering

Driving system:

1. Hydrostatic 4WD, piston pump+ 4 hydraulic wheel motor drive the loader
2. Independent closed working and driving system, the engine speed do not influence the auxuary to the attachments
3. Flexible articulation, fantastic motility in rough terrain, always 4 wheels touching ground and driving

Hydraulic & electrical output                   Combined joystick control                  Pressure testing connector                 Flexible articulation

Delivery & Usage
Packaging
Shipping
20ft or 40ft container
Packing
nude packing, drive into container directly



Loading
Details
Order 1 to 3 sets:                                                  Nude packing, shipped by 20'GP

Order 4-6 sets:
Nude packing, shipped by 40'GP

With different amount of attachments, the loading meathod is different accordingly

Now STEEL CAMEL loaders can be found in UK, Poland, Argentina, Australia, Spain, USA, Canada, Portugal, etc. Offering good service to customers.

Applications

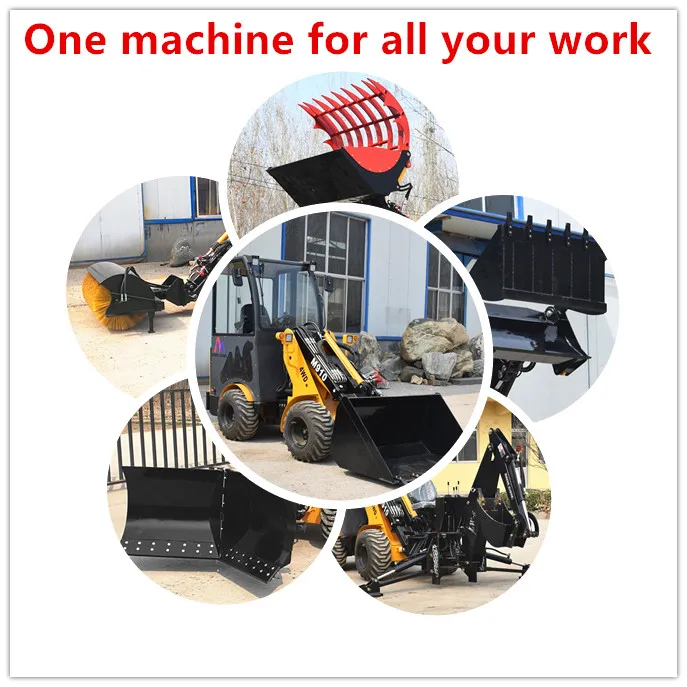

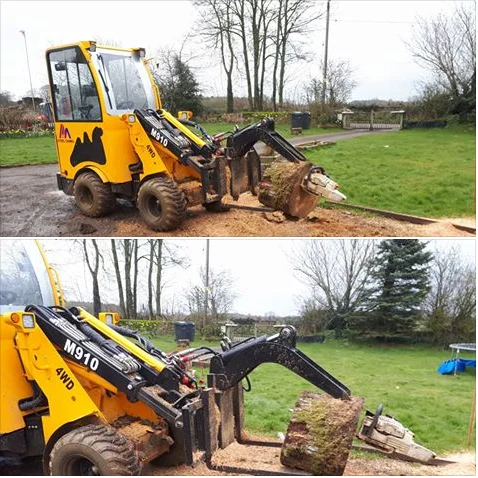

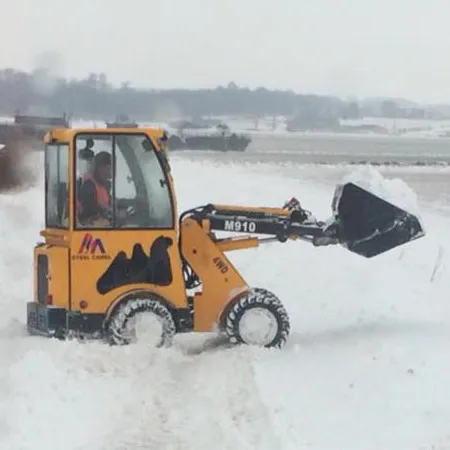

Thanks to the compact design, front & rear output, telescopic boom, quick coupling system ect.  "STEEL CAMEL" series multifunction tractor loaders were widely used in farming, construction, gardenning,landscaping, municiple work, become good partners for the customers worldwide

Why Choose Us

Choose "STEEL CAMEL", you won't be disappointed in any aspect.

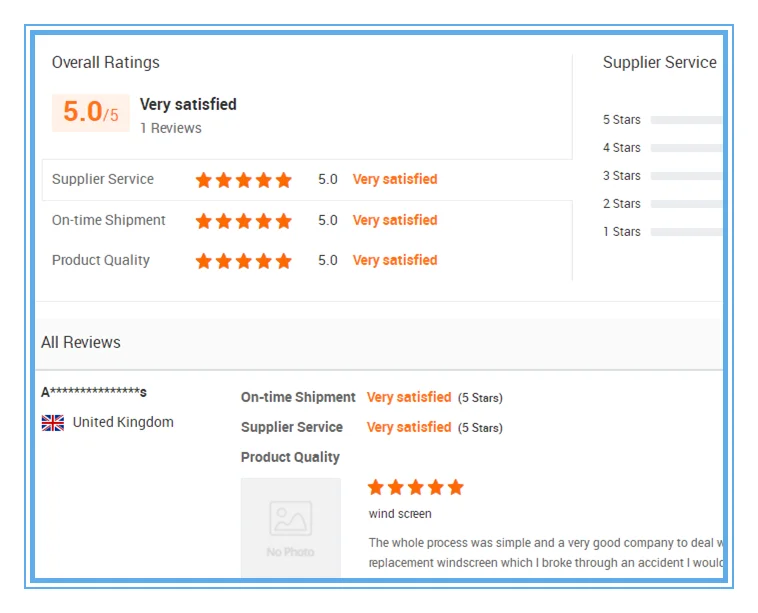

Action speaks louder than words, from the below data, photos, you can have a better idea of our reputation

All five star ratings: Supplier service--On time shipment--Product quality

Ability for customized order: No matter what changes or what new items you need,  our senior engineer team which has been in this field since 1980s are ready for any special requirements all the time.


Best Price:We are not the cheapest in this industry, but we guarantee you'll get the BEST PRICE among similiar products.


Quality: "STEEL CAMEL" products are like the camel, always offer more service but need less servicing, and are durable for tough usage. Choose us you get a long lasting, trouble less machine.


On time delivery:We respect the contract, and will deliver the goods on time as agreed for customized order. For normal products, we have stocks for immediate delivery.


Safety:We are alibaba assured supplier, dealing with us you have no worry about your money and the contract terms' carrying out.


Payment:We accpet various payment terms, T/T, L/C, E-Checking, Paypal, Credit Card, etc. Always one way convenient to you.


Services: Our sales ans service team has rich experience in both the products and the international trade, can offer professtional and satisfied service of product consulting, door to door transporting, whole working life after service.


Our Service Principle---Offer a solution not only a product

                                               Whole working life track on and service

Good Service:

Oversea pre-check of machine before purchase:

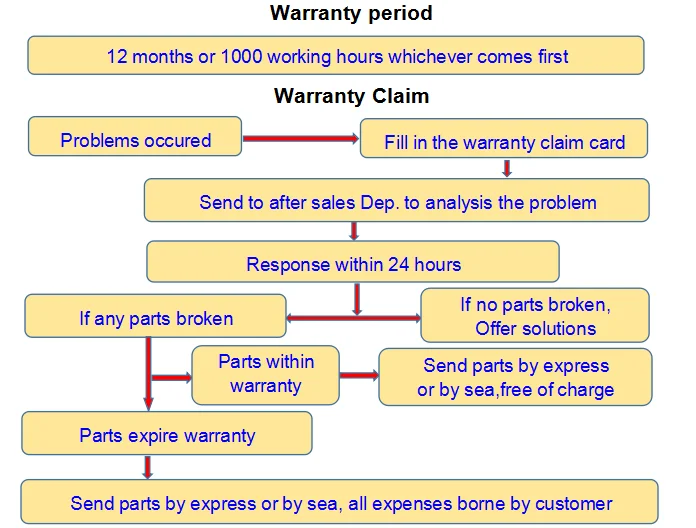

Warranty:

our service will start from the very minute got your message and last for whole lifetime of the machine

Before order

Quick response to your' messages

Analyze your needs and recommend suitable machines.

Design a new machine per your requirements, if needed.

Confirm order details, like price, payment term, delivery time, transporting, etc.

During order

Feedback production progress.

Arrange shipment timely.

After production, send photos of each machine, as well as loading.

Arrange door to door transport if needed

After order

Teach you how to use and maintenance the machine.

Follow up your usage of machine and offer necessary suggestions.

Quick response and solve any problems your have, to save money and time for customers.

As a manufacturer, we have all spare parts in stock for quick delivery by postage for your parts needs.

All our STEEL CAMEL products have warranty for no worry purchase and usage.

Inquiry Now

We now have a mid-year promotion (2018), customers who sent inquiry between June. 1st  to June. 30th will get a discount, the best time to send an inquiry of your interested items.

You can also add my online contact for 24h service, mobile/what's app/wechat/skype:0086 136 1548 7873

STEEL CAMEL PRODUCT--LESS SERVICING, MORE SERVICE, RELIABLE CHOICE OF ALL YOUR WORK
HONEST MACHINERY TEAM--HONEST, PROFESSIONAL,GOOD SERVICE, YOUR TRUSTWORTY PARTNER
