1 ton to 18 tons wheel or crawler excavators

FOB Reference Price:Get Latest Price
$12,000.00 - $15,000.00 / Set | 1 Set/Sets excavator hydraulic hammer (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Rated Speed:
3.5km/h
Place of Origin:
Shandong, China
Brand Name:
STEEL CAMEL
Model Number:
SC22
Condition:
New
Moving Type:
Crawler Excavator
Maximum Digging Height:
3700mm
Maximum Digging Depth:
2450mm
Machine Weight:
2200kg
Max Digging Radius:
4370mm
Certification:
ISO9001
Product name:
excavator hydraulic hammer
Engine brand:
Chinese Laidong or oversea brands engine
Power:
22.1kw/30hp
Overall dimension (L*W*H):
4080*1300*2280mm
Max. Dumping height:
2290mm
Min .swing radius:
2015mm
Max. Bucket digging force:
13.3KN
Max. Arm digging force:
9.3KN
Warranty:
One Year
Accessories:
side cutting edge, auger, hammer, log grapple
After-sales Service Provided:
Engineers available to service machinery overseas
Operating Weight:
2200kg
Bucket capacity:
0.1cbm
Supply Ability
Supply Ability:
1000 Set/Sets per Year excavator hydraulic hammer
Packaging & Delivery
Packaging Details

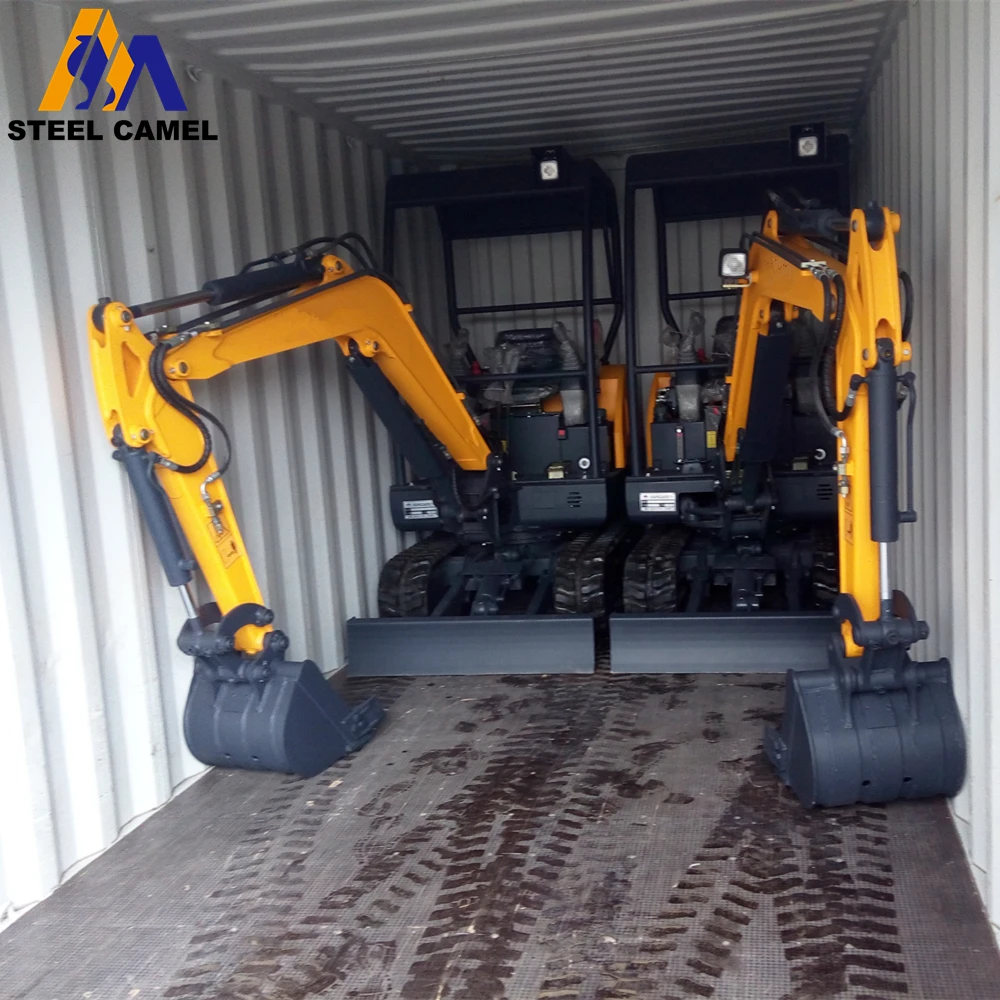

The SC22 crawler excavators can be driven into container directly and fasten without packing, loading condition as below:
2 sets SC22 excavator per 20'GP ; 4 sets SC22 excavator per 40'GP
Port
Qingdao
Lead Time :
20 days after receiving deposit
Product Description

1 ton to 18 tons excavators excavation on swamp moist soil

Product Application

STEEL CAMEL SC22 crawler excavator with various attachments, like hydraulic hammer, log grapple, ect. is suitable for vegetable greenhouses loose, landscaping of municipal departments, orchard nursery tree digging, concrete pavement broken, sand and stone material mixing and small space construction operations,reducing maintenance and operating costs, improving the degree of mechanization.

SPECIFICATIONS FOR STEEL CAMEL SC22 EXCAVATOR

Engine
Engine model
Chinese Laidong
Rated power
22.1kw(30HP)@2350rpm
type
3 cylinder, diesel

Main performance parameters
Overall dimension (L*W*H)
4080mm*1300mm*2280mm
Standard Bucket capacity
0.1 cbm
Swing speed
12rpm
Maximum Grade ability
30°
Maximum Bucket digging force
13.3kN
Maximum Arm digging force
9.3kN

Hydraulic system
Hydraulic system pressure
20Mpa
Main pump and valve
Chinese
driving motor and slewing motor
EATON

Main Features

1.High Output: The work equipment, undercarriage and frame have been reinforced to meet the rigorous requirements for mining applications.

2.Excellent Performance: The main pump can perfectly match the engine output power

3.The engine meets Stage III/Tier 3 emission standards further reducing fuel consumption.

4.Superior reliability: After 3000 hours operations, the reliability is considered leading level.

5.Ultra low maintenance costs: Filter replacement and maintenance at your fingertips. The easy access reduces maintenance costs.

Certifications
Detailed Images

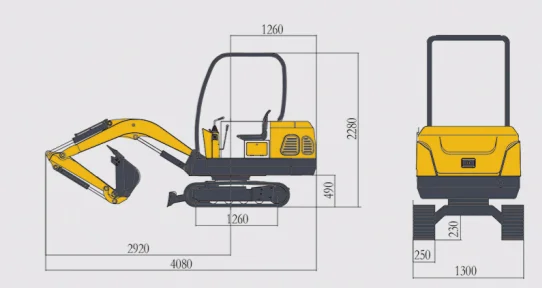

Swing boom

Maximum Digging height 3700mm
Maximum Dumping height 2290mm
Maximum Digging depth 2450mm
Maximum Vertical digging depth 2280mm
Maximum Digging radius 4370mm
Minimum swing radius 2015mm
Maximum Lifting height of blade 240mm
Maximum Cutting depth of blade 310mm
Boom swing angle(Left) 70°
Boom swing angle(Right) 50°


Various attachments

Hydraulic hammer

Tilt bucket

Trenching spade

auger

rigid log grabber

rotating log grabber

customized attachments

Packing & Delivery
Packaging
Shipping
by container
Packing
nude packing, drive into container directly



Loading Details
2 sets/20'GP; 4 sets/40'HQ
