Multifunctional telescopic mini 4WD tractor front end wheel loader with skid steer attachment

FOB Reference Price:Get Latest Price
$12,000.00 - $22,000.00 / Set | 1 Set/Sets (Min. Order)
Rated Load:
1 Ton
Model Number:
M910
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
Attachment (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Machine Weight:
1850kg
Dimension(Long * Breadth * High):
2690*1300*2280 mm
Warranty:
1 YEAR
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
United Kingdom, United States, Germany, Indonesia, Australia, Argentina, Chile
Showroom Location:
United Kingdom, United States, Germany, Indonesia, Argentina, Australia
Condition:
New
Brand Name:
STEEL CAMEL
Place of Origin:
Shandong, China
Type:
Front Loader
Moving Type:
Wheel Loader
Certification:
ROPS, CE, EPA
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
Hydraulic Pump Brand:
SAUER-DANFOSS
Engine Brand:
YUNNEI
UNIQUE SELLING POINT:
Imported hydraulic system
Power(W):
35kw
Bucket capacity:
0.5m3
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
2 years
Core Components:
Engine, Motor, Pump
Product name:
small telescopic wheel loader
Optional Engine:
EPA Tier4/EU V/Chinese
Max. lifting height:
3030 mm
Min. turning radius:
2120 mm
Standard tire:
26x12-12
Transmission:
Hydrostatic (various speed)
Drive type:
4 hydraulic wheel motors
Oil flow:
Max. 67LPM
Oil pressure:
200 bar
Attachments:
over 40 items, OEM, ODM
Packaging & Delivery
Packaging Details
Nude packing; 2 sets/ 20'GP; 4 sets/40'HQ
Port
Qingdao
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 30 To be negotiated
Video Description
Features

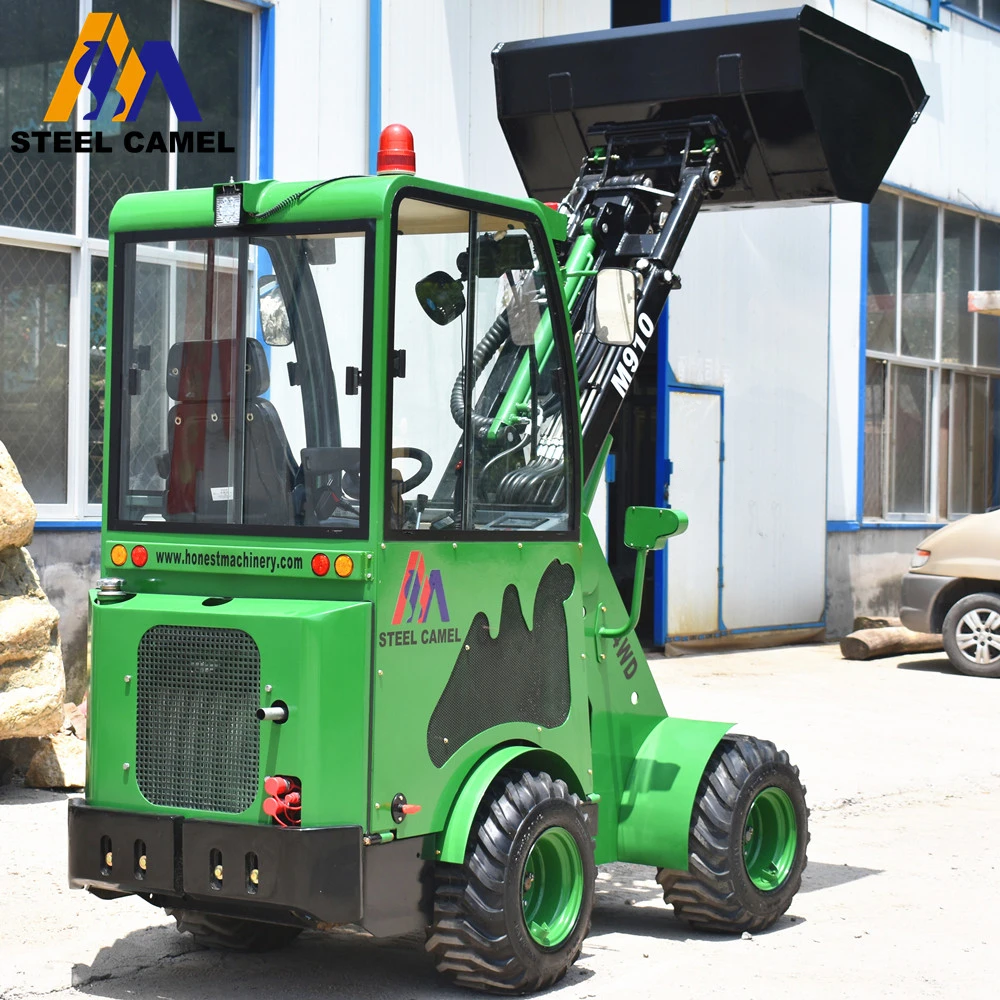

Multifunctional telescopic mini 4WD tractor front end wheel loader with skid steer attachment

1) Heavy duty telescopic boom, boom floating and self-leveling, higher lifting with safe operation
2) Hydrostatic transmission, very easy automatic type

3) 4 independent hydraulic wheel motors drive, very powerful
4) Quick coupling and quick hitch system, easy and quick change attachments, so high working efficiency
5) Both front and rear hydraulic output for various attachments, more multifunctional
6) Yanmar/Kohler engines, Italian pump and valves, EPA Tier4 and EU V optional
7) 9-functions joystick, easy and quick operation
8) Flexible articulation and differential lock for all rough terrain
9) Tiltable cabin, fully access to inner parts

Specification
Model
M910 telescopic wheel loader
Dimension with cabin (LxWxH)
2690 x1300 x 2280mm
Max. lifting height
3000mm
Bucket capacity
0.5cbm
Rated loading capacity
950-1200kg
Min. turning radius
2120mm
Turning angle
45 degree
Min. ground clearance
268mm
Speed
0-12km/h
Operating weight
1850kg
Standard tire
26X12-12
Working oil flow
33.5L/minx2
Tracking oil flow
78L/min
Engine
Yanmar/Kohler (EPA Tier 4 final/EU V)
Rated power
33kw/45hp
Application

Loader+Tractor, one Multi-purpose helper for globle customers

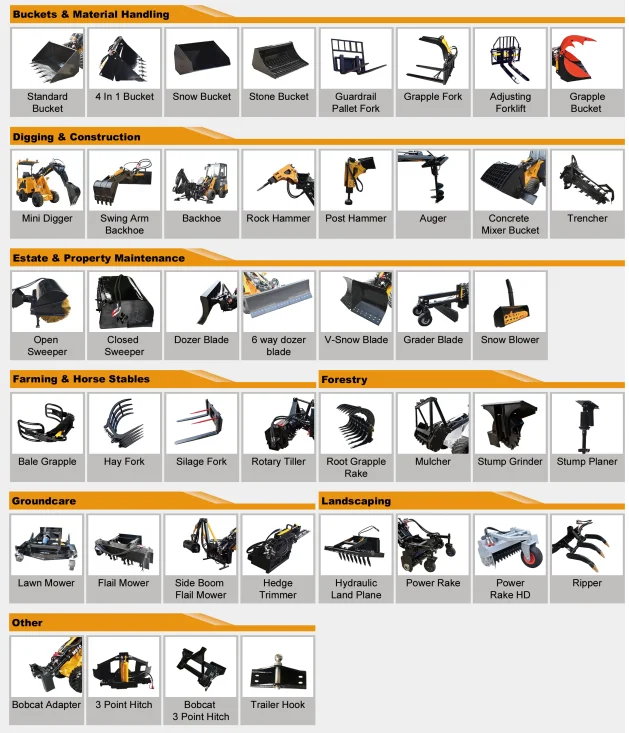

Front part is loader, with telescopic boom, hydraulic output, quick hitch and coupling system for various attachments, like bucket, fork, grapple, auger, hammer, lawn mower, etc.


Rear part is tractor, with hydraulic output and 3-point hitch, for rotary tiller, trailer, etc.


STEEL CAMEL series wheel loaders are widely used in farming, agriculture, landscaping, gardening, construction, municiple, etc.

Pack and load

Packing:

Loader in nude packing;
Attachments in nude packing or iron frame


Loading/unloading:

Drive into container directly, very fast and easy

2 sets/20'GP, 4 sets/40'HQ;
Different attachments and quantity, different loading

Company

Shandong Honest Machinery Co., Ltd is set up by professional engineers, skilled production workers and experienced sales, all have been focusing on machinery since 1980s.
"Honest" is our business way. We appreciate customer's trust, and we are always honest as return.

Excellent R&D capacity

Customized service

High quality heavy duty materials

Advanced production lines

Standard assembling process

Ready to ship for fast delivery

CE, ROPS/FOPS certificates, guarantee high quality

FAQ

1. Are you manufacturer?

Yes.

We are factory in Taian city, Shandong province, near Qingdao port

By fast train to Taian station, from Shanghai, 3-4 hours; from Beijing, 2-3 hours.

2. Do you have warranty?

Yes, all machines have 18 months or 1000 hours warranty, whichever comes first

Warranty starts from the time you receive the machines, not include production and shipping time.

Within warranty, all parts are offered for free. Exceed warranty, all parts are offered at cost prices.

3. Do you have after-sale service?

Yes.

After order, we will start production quickly and keep updated.

After shipment, we will track the shipping and keep updated.

After you receive machines, we will instruct the usages and maintenance.

During usage, if any problems, we will offer timely and complete solutions.

We offer servicing for the whole lifetime of machines, no worry for personal use or resell.

If any other query, please do not hesitate to send me an inquiry. I will feedback asap.
